Author: Site Editor Publish Time: 2025-09-03 Origin: Site
Air conditioning systems are essential in homes, offices, and industrial spaces for maintaining comfort and protecting sensitive equipment. However, while these systems regulate temperature efficiently, they can also present hidden risks—particularly from water damage. Condensation is a natural byproduct of cooling air, and if not properly managed, it can accumulate in the drain pan, overflow, and cause property damage, mold growth, and equipment malfunctions.
This is where float level switches, specifically drain pan level switches, come into play. These devices provide a simple, reliable solution for monitoring and controlling water levels in air conditioning systems, preventing leaks, and ensuring long-term operational efficiency.
A float level switch is an electromechanical device designed to detect liquid levels within a tank or pan. In air conditioning units, a drain pan float level switch monitors the water that collects from condensation.
The mechanism is straightforward yet effective:
A float sits in the pan and rises with the water level.
When the water reaches a predefined height, the float activates a switch.
The switch can trigger a warning, shut off the AC unit, or activate a pump to remove excess water.
This simple principle provides an immediate response to potential overflow situations, protecting both the air conditioning system and the surrounding environment.
Compact and Robust Design: Designed to fit inside standard AC drain pans.
Reliable Operation: Minimal moving parts reduce the risk of failure.
Versatility: Compatible with water, glycol solutions, or other condensate liquids.
Customizable Output: Can be configured for alarms, automatic pump activation, or system shutdowns.
Without a proper water management system, air conditioning units can face several issues:
Water Overflow and Property Damage
Overflowing drain pans can leak water into ceilings, walls, and floors, leading to expensive repairs. A drain pan float level switch ensures the system reacts before damage occurs.
Mold and Bacterial Growth
Standing water promotes the growth of mold, mildew, and bacteria, which can degrade indoor air quality and pose health risks. By maintaining proper water levels, float switches help prevent microbial growth.
Equipment Malfunction
Excess water can damage sensitive electronic components in the AC system, leading to reduced efficiency or complete system failure. Float switches act as a preventive measure.
Energy Inefficiency
When water accumulates in the drain pan, the system may operate less efficiently, as moisture can affect heat exchange and airflow. Float switches ensure optimal system performance by keeping water levels in check.
Drain pan float level switches are commonly used in:
Residential Air Conditioning Units – Protecting homes from water damage due to clogged or inefficient drain systems.
Commercial HVAC Systems – Ensuring uninterrupted operation in offices, hotels, and retail spaces.
Industrial Cooling Systems – Preventing downtime and costly repairs in factories and processing facilities.
Refrigeration Units – Monitoring condensate in large refrigeration and freezer units.
Drain pan float level switches are essential for protecting air conditioning and HVAC systems from water damage. They provide early warning when water levels rise, activating alarms or shutting down units to prevent overflow. This ensures timely intervention, avoiding costly repairs and downtime in both residential and commercial settings.
These switches can also enable automatic water management by connecting to condensate pumps, efficiently removing excess water without manual intervention. Maintaining proper water levels helps extend the lifespan of HVAC equipment, preventing corrosion, rust, and damage to components like coils, fans, and compressors.
By preventing leaks, float level switches also improve indoor safety and health, reducing mold growth and bacterial contamination that can affect occupants. Furthermore, they are a cost-effective preventive solution, significantly cheaper than repairing water-damaged walls, floors, or equipment.
Modern float level switches are reliable and versatile, designed to operate across various residential, commercial, and industrial systems. With their combination of automation, durability, and safety, they provide peace of mind to homeowners and facility managers, ensuring efficient and trouble-free operation of AC systems.
Installing a drain pan float level switch is a simple step that safeguards equipment, enhances indoor air quality, and prevents unexpected costs.
Different AC systems require different types of float switches. Common designs include:

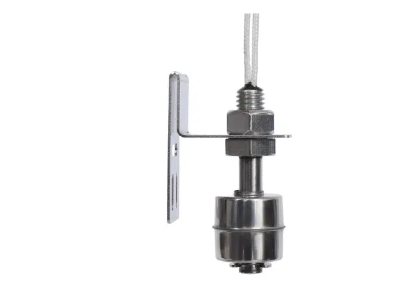

Vertical Float Switches – Mounted upright; used in deep pans or tanks.
Horizontal Float Switches – Mounted sideways; ideal for shallow or compact drain pans.
Magnetic Float Switches – Use magnetic fields to trigger the switch; provide highly reliable operation.
Multi-Level Switches – Detect multiple water levels for staged alerts or pump activation.
Choosing the right type depends on the AC unit design, pan size, and desired level of control.
Proper Placement
The float should be positioned where water accumulates naturally and should not be obstructed by debris or pan edges.
Secure Mounting
Ensure the switch is firmly attached to avoid misalignment or false readings caused by vibrations or movement.
Electrical Safety
Float switches should be installed in accordance with electrical safety standards to prevent short circuits or other hazards.
Accessibility
Place the switch in a location that allows easy inspection, cleaning, and replacement if necessary.
Integration with Alarms or Pumps
Connect the float switch to an audible alarm or condensate pump for automatic intervention in case of high water levels.
Even though drain pan float level switches are low-maintenance, regular checks are recommended:
Clean the Float – Remove dust, sludge, or algae that could hinder movement.
Inspect Electrical Connections – Ensure wires and terminals are secure and corrosion-free.
Test Functionality – Periodically pour water into the pan to confirm that the switch activates as intended.
Replace Worn Components – Over time, the float or switch mechanism may wear and require replacement.
By following these simple maintenance routines, building managers and homeowners can ensure long-term reliability and effective water management.
As HVAC technology advances, drain pan float switches are increasingly integrated into smart AC monitoring systems. When connected to IoT-enabled platforms, they provide:
Remote Alerts – Notifications sent directly to mobile devices or building management systems.
Automated Reporting – Track water levels and system status over time.
Predictive Maintenance – Data can help identify trends and potential issues before they escalate.
This integration enhances safety, reduces downtime, and improves overall efficiency.
Water management in air conditioning units is critical for safety, efficiency, and equipment longevity. Drain pan float level switches provide a reliable, cost-effective solution to prevent overflow, water damage, and associated health hazards. By combining simplicity with robust functionality, these devices are an essential component of modern AC systems, both residential and commercial.
For businesses and homeowners seeking high-quality float level switches for their air conditioning systems, Dongguan Dalang Aoer Parts Ltd. offers reliable solutions designed for durability, accuracy, and seamless integration. To explore their range of products and learn how they can help prevent water damage in your AC units, reach out to their team today.
