Author: Site Editor Publish Time: 2026-05-24 Origin: Site

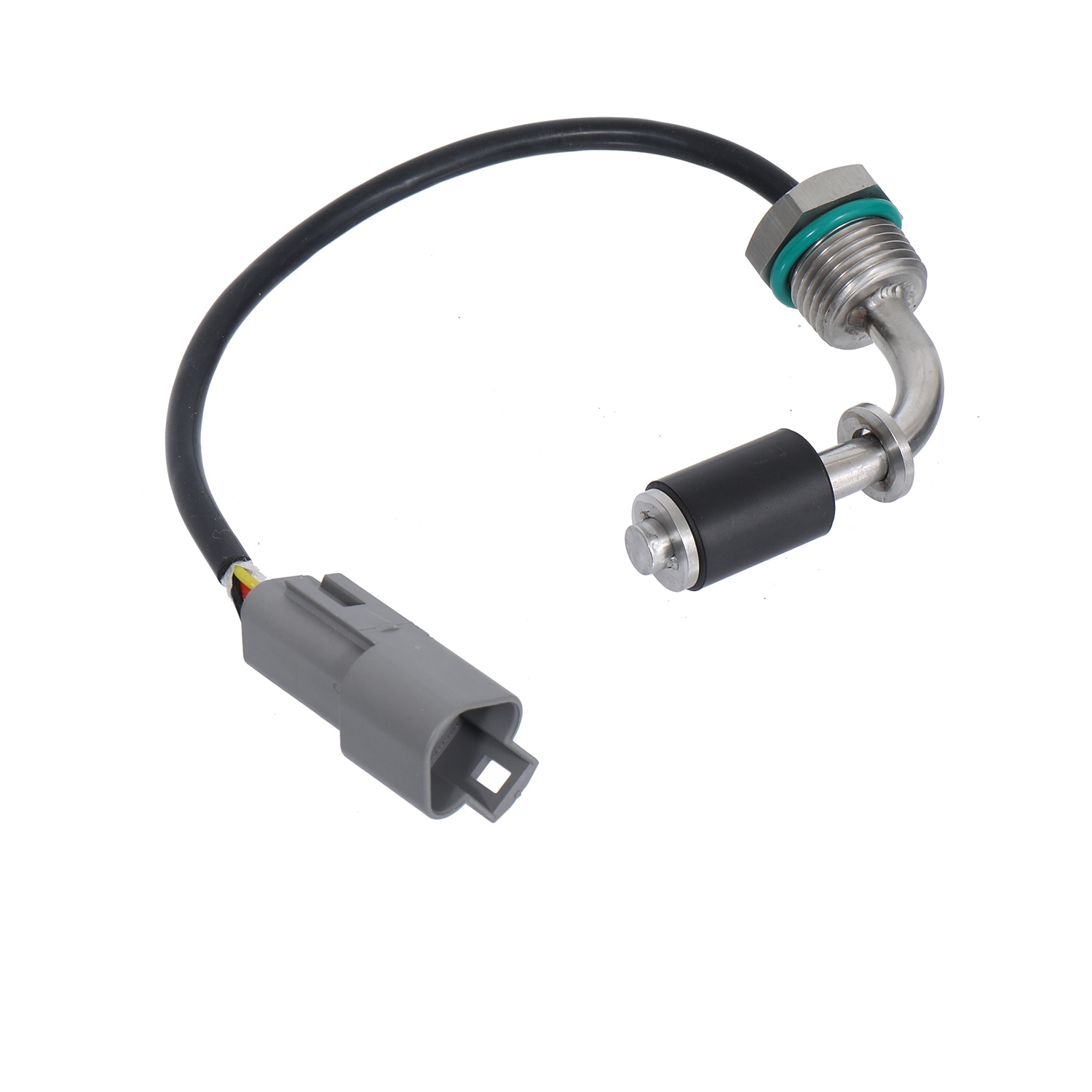

Selecting a liquid level monitoring system involves more than just verifying basic dimensions. Engineers must carefully evaluate tank geometry and fluid dynamics before finalizing a sensor's mounting orientation. Choosing an incorrect setup often causes false alarms. It can create premature mechanical failures and introduce severe maintenance bottlenecks. Whether you configure a deep underground wastewater sump or manage a massive indoor chemical storage tank, the physical constraints of the vessel dictate the mounting strategy. Furthermore, the fluid's chemical properties heavily influence how moving parts perform over time.
This guide breaks down the engineering realities of both vertical and horizontal configurations. You will learn exactly how installation angles influence mechanical performance and maintenance cycles. We explore the specific structural limits and fluid compatibility issues defining each mechanism. Ultimately, this detailed analysis helps procurement and engineering teams specify the right hardware for highly challenging industrial applications.
Structural Mechanics: Top-mounted switches typically rely on a vertical sliding stem mechanism, while side-mounted switches utilize a horizontal pivoting hinge.
Space & Access: Top-mounted configurations are ideal for deep, narrow tanks (like wells) and multi-point sensing, whereas side-mounted models excel in massive indoor tanks where top access is restricted.
Media Compatibility: Liquid properties dictate selection; heavy scaling and particulates are notorious for jamming side-mounted hinges but are better tolerated by vertical sliding stems.
Wiring Logic: Both orientations support Normally Open (NO) and Normally Closed (NC) logic, but their baseline "resting state" changes based on the installation angle.
Engineers must understand how physical orientation alters internal sensor mechanics. Gravity and leverage play major roles in operational reliability. We must carefully match the internal mechanism to the external fluid environment.
A vertical configuration relies on a highly reliable sliding stem architecture. A magnetic float travels vertically along a rigid guide tube. This movement directly actuates internal reed switches positioned at specific heights. Industrial reed contacts often feature ruthenium plating to ensure extreme mechanical longevity. Gravity pulls the float down when liquid levels drop. The liquid's natural buoyancy pushes it up as the tank fills.
This vertical mechanism brilliantly isolates the sensitive electrical components. They remain completely protected inside the sealed inner stem. Only the exterior float and the outer tube contact the process media. This gravity-dependent design minimizes complex moving linkages.
Horizontal sensors utilize a pivot or hinge architecture. The float attaches to an articulated arm. This arm swings up and down through a sidewall penetration as fluid levels change. A magnetic actuation field crosses the solid physical barrier of the tank wall.
This specific design often keeps the primary switch mechanism entirely outside the wetted area. Maintenance personnel highly appreciate this external isolation during routine inspections. However, relying on a mechanical pivot point introduces unique physical stresses. The horizontal leverage heavily relies on accurate specific gravity calculations to overcome the hinge friction.
Vertical installations dominate specific industrial environments. They offer distinct structural benefits for complex monitoring scenarios.
You will frequently find these units in deep underground tanks and narrow vessels. They perform exceptionally well in wastewater sumps. Engineers specify them heavily for situations requiring multiple actuation points along a single vertical axis.
Multi-Point Efficiency: You can house multiple floats on a single stem. This setup monitors low, high, and critical overflow levels simultaneously.
Maintenance Accessibility: Operators can withdraw the entire assembly from the top cover. You can inspect the complete unit without draining the heavy process liquid.
Continuous Measurement Potential: The vertical design easily scales. Engineers can upgrade it into a continuous float level transmitter if system control requirements evolve.
Long guide stems face severe vulnerabilities in highly turbulent applications. Without a protective stilling well, intense sloshing can easily bend the rigid probe. Once bent, the float will jam. Additionally, this setup requires unobstructed overhead clearance. You must have enough vertical room for initial installation and eventual extraction. When utilizing a Top-Mounted Float Level Switch, operators must measure ceiling clearance carefully.
Best Practice: Always specify a stilling well when installing vertical probes in agitated mixing tanks. This protects the stem from aggressive lateral forces.
Horizontal switches solve complex spatial limitations. They provide highly targeted level detection where vertical access proves impossible.
These units excel in extremely tall indoor storage tanks. They are perfect for enclosed vessels completely lacking top access. Engineers specify them exclusively for applications requiring a single, highly accurate point-level alarm.
Installation Flexibility: Technicians can tap the device directly into the tank wall. You place it at the exact fluid height required. This completely eliminates the need for excessively long vertical probe stems.
Headroom Conservation: The horizontal design requires zero vertical clearance above the tank roof.
Initial installation requires partial tank draining. The hazardous liquid must drop safely below the intended mounting point. Routine maintenance and replacement demand this identical draining process. Furthermore, the physical arc of the hinge creates a slight mechanical disadvantage. These horizontal sensors remain highly susceptible to mechanical dead zones. The arc travel distance limits absolute precision near the primary pivot point. When you install a Side-Mounted Float Level Switch, always account for this arc travel during calibration.
Common Mistake: Failing to verify the inner wall clearance. The internal float needs sufficient unobstructed space to swing through its full mechanical arc.
Choosing between these two orientations requires a structured approach. We evaluate four distinct engineering dimensions. The chart below summarizes the baseline differences before we analyze them in detail.
Decision Dimension | Top-Mounted (Vertical) | Side-Mounted (Horizontal) |
|---|---|---|
Tank Access | Requires substantial overhead ceiling clearance. | Requires side access; zero top clearance needed. |
Maintenance | Removable without draining the vessel. | Requires draining fluid below the tap point. |
Buildup Tolerance | Moderate; smooth sliding action resists minor scaling. | Low; pivots easily jam from crystallization. |
Turbulence Risk | High risk of lateral bending (needs stilling well). | High risk of accelerated hinge wear. |
Physical space often dictates your initial hardware selection. Contrast a deep-well scenario against a giant indoor silo. A narrow underground well strictly mandates a top-mount approach. You simply cannot physically access the subterranean sides. Conversely, a massive indoor silo often brushes tightly against the facility ceiling. This restrictive headroom limitation makes a side-mount approach absolutely mandatory.
Liquid composition introduces a crucial technical distinction. You must actively evaluate the "hinge vs. stem" scaling problem. Liquids prone to heavy crystallization or rapid coagulation pose severe mechanical risks. Heavy scaling from calcium deposits will quickly jam a side-mount's pivot hinge. The mechanical tolerance inside a horizontal hinge is extremely tight. Vertical stems offer a much smoother sliding action. This vertical travel remains slightly more forgiving of particulate buildup.
Severe sloshing affects each orientation differently. High turbulence causes rapid mechanical wear on horizontal hinges. The constant fluid hammering degrades the internal pivot pin. Over time, the float will snap off. Conversely, severe agitation risks lateral bending on top-mounted stems. A heavy stainless steel stilling well effectively mitigates this bending risk. Engineers must analyze fluid dynamics carefully before finalizing the mechanical layout.
Manufacturers craft these sensors from stainless steel or engineered industrial plastics. Specialized applications require advanced material science. For example, highly toxic H2S sour gas sumps quickly degrade standard 316 stainless steel. You may require exotic materials like NACE-compliant Inconel alloys to prevent stress corrosion cracking. If mechanical parts degrade too rapidly under chemical attack, you must explore entirely different sensing technologies. Any robust Float Level Switch must match the precise chemical makeup of your process media.
Even perfectly specified sensors require operational oversight. You can prevent premature system failures by understanding common mechanical pitfalls.
The instrumentation industry defines the "normal" state as the sensor hanging at its absolute lowest point. This state represents a completely dry tank. Misinterpreting Normally Open (NO) and Normally Closed (NC) logic causes significant commissioning issues. When technicians physically rotate a side-mount unit 180 degrees during installation, they alter the mechanical resting state.
This physical rotation can inadvertently invert your high and low alarm triggers. A high-level alarm suddenly behaves like a low-level interlock. Always verify circuit continuity during dry commissioning. You can learn more about proper industrial hardware configuration by reviewing our About Us resources.
Strict regular maintenance schedules prevent catastrophic jamming. Technicians must conduct visual inspections for microscopic scale buildup. Focus your attention specifically on horizontal pivot points. On vertical models, meticulously clean the stop-collars. Heavy debris collects rapidly at these collars and prevents the float from travelling its full magnetic distance.
Extreme high-temperature environments act as a silent mechanical killer. Intense heat can degrade the magnetic coupling in both switch types over time. As you approach the magnet's Curie temperature, it permanently loses its strength. The internal reed switch subsequently fails to actuate. This dynamic causes a highly dangerous silent failure where the control room receives no alarm. Implement strict routine testing in high-temperature applications.
The choice between a top-mounted and side-mounted sensor remains a careful balancing act. You must align your structural tank limits against the physical chemistry of the process media.
Choose top-mounted units for complex multi-point monitoring and easy extraction. They offer superior reliability in mildly scale-prone liquids.
Select side-mounted models for highly accurate single-point alarms. They efficiently solve severe overhead space restrictions.
Document all physical tank dimensions meticulously before starting procurement.
Analyze process fluid viscosity and establish the maximum operating temperature.
Identify your exact desired switch points before requesting custom engineering drawings.
A: Most side-mounts are strictly fixed-point devices. To change the actuation level, operators must drain the tank completely. You then need to cut and install a new wall port at the desired height. Conversely, top-mounted stems often feature adjustable stop-collars, allowing technicians to modify the actuation point without modifying the tank.
A: The core electrical logic remains identical. The circuit closes upon liquid rise. However, technicians can physically rotate some side-mounted switches 180 degrees during wall installation. This physical rotation easily flips their operation from NO to NC. This specific field-adjustable feature is rarely available in standard top-mounted stems.
A: When severe agitation threatens mechanical integrity, engineers utilize non-contact alternatives. Ultrasonic sensors or ToF (Time-of-Flight) lasers measure liquids without physical contact. Alternatively, displacer switches suspended on flexible cables resist bending forces in highly agitated sumps perfectly.
