A. types of input

● standards: 0~10mA /4~20mA /0~5V /1~5V

● linear non-standards: 0~100mV /0~400Ω

B. Main specifications:

● input range: -1999~9999

● resolution: 0.5%FS±1 bit

● working voltage: AC120 (±10%)

● ambient: 0~50℃，≤85% RH

● power consumption:±5W

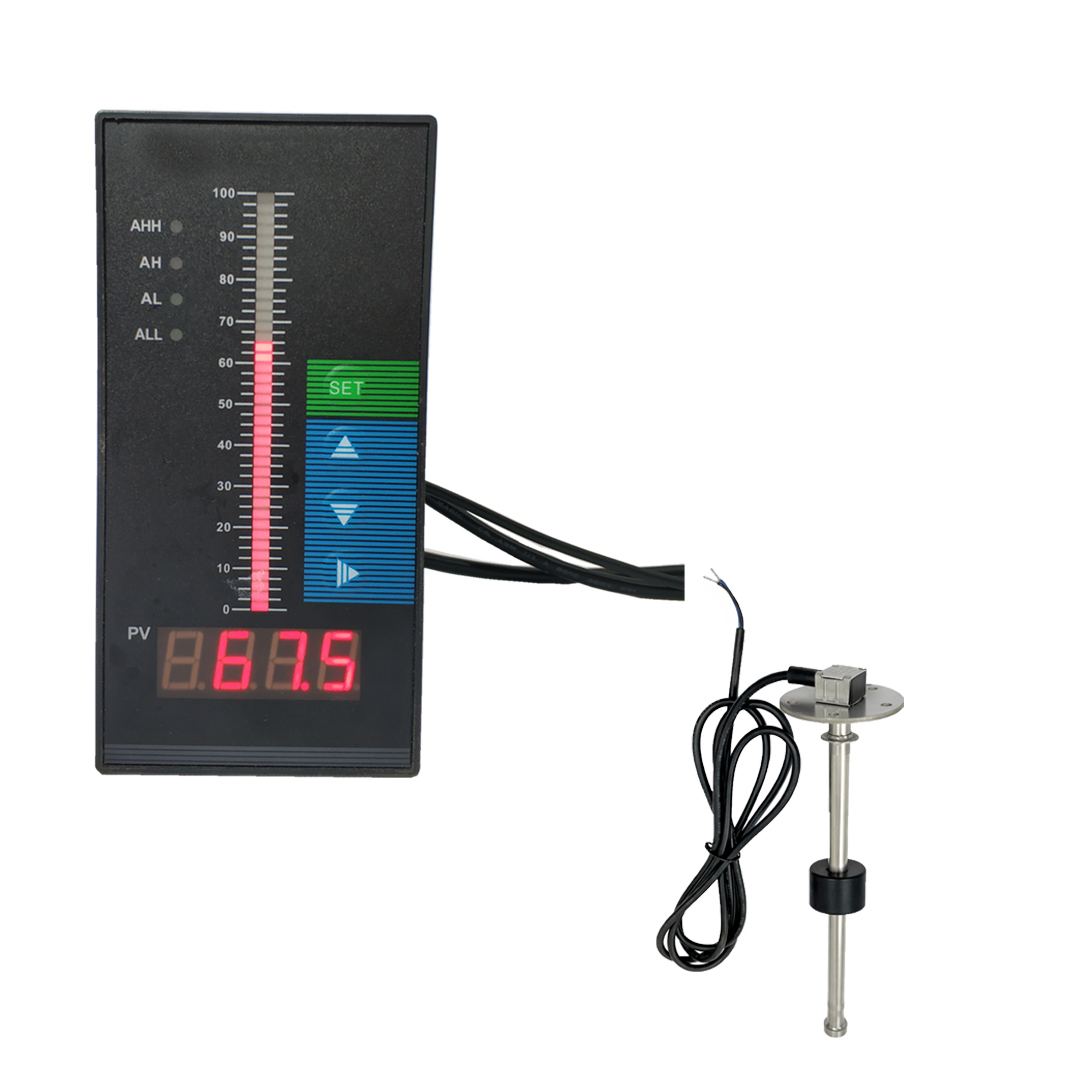

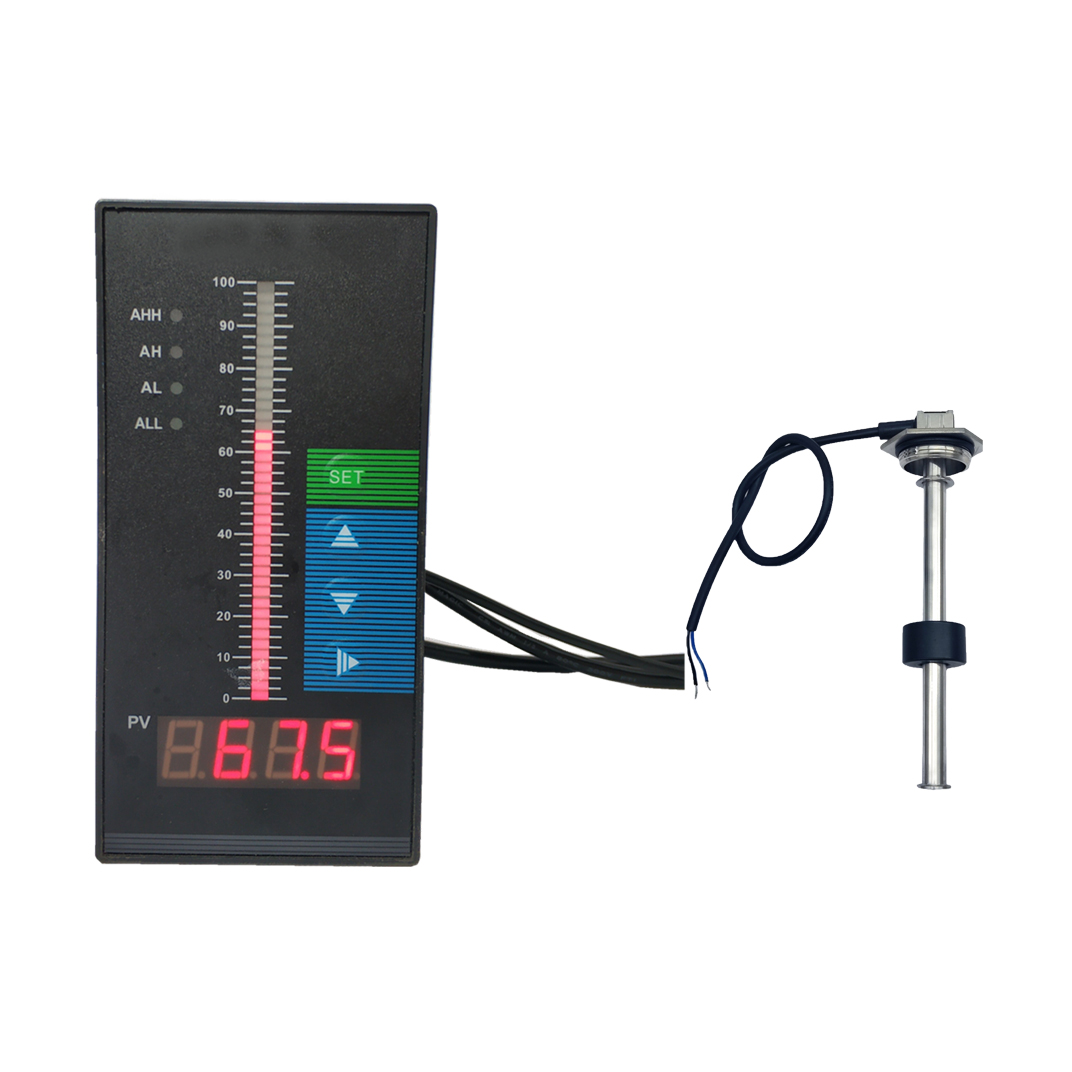

C. Panel

● 1—AH for High alarm; AHH for High-High alarm

AL for Low alarm; ALL for Low-Low alarm

● 2—SET

● 3—▲

● 4—▼

● 5—►

● 6—Main display

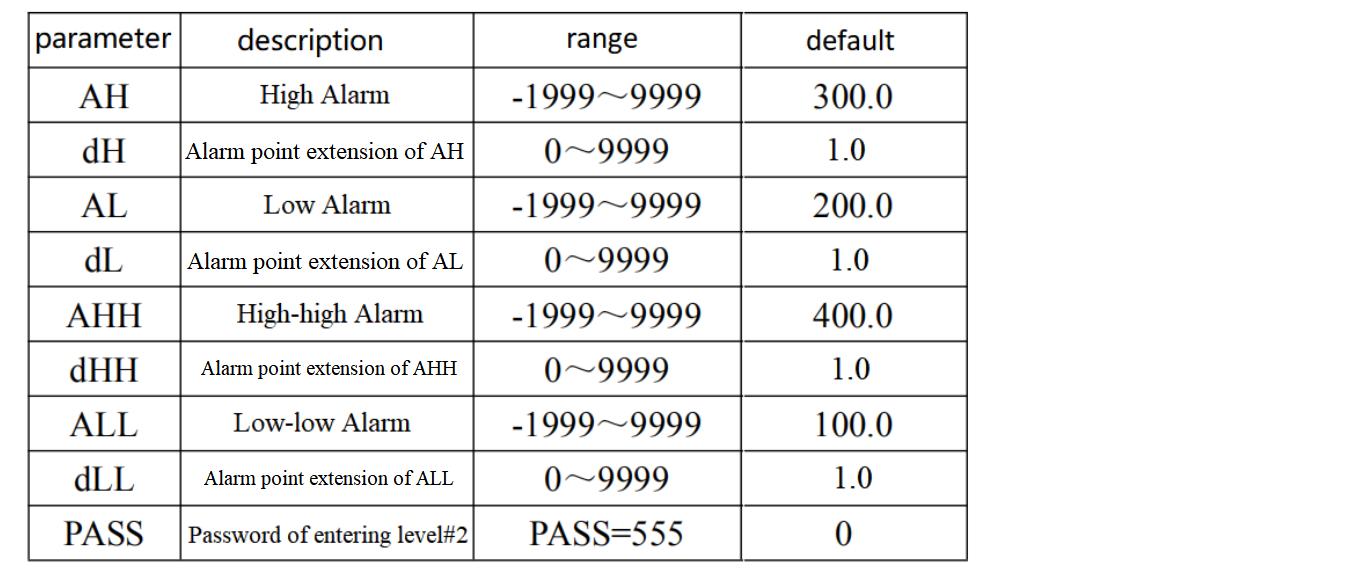

A. Setting of level #1 parameters

● long-pressing “SET” for 3 second to enter & exit the main menu

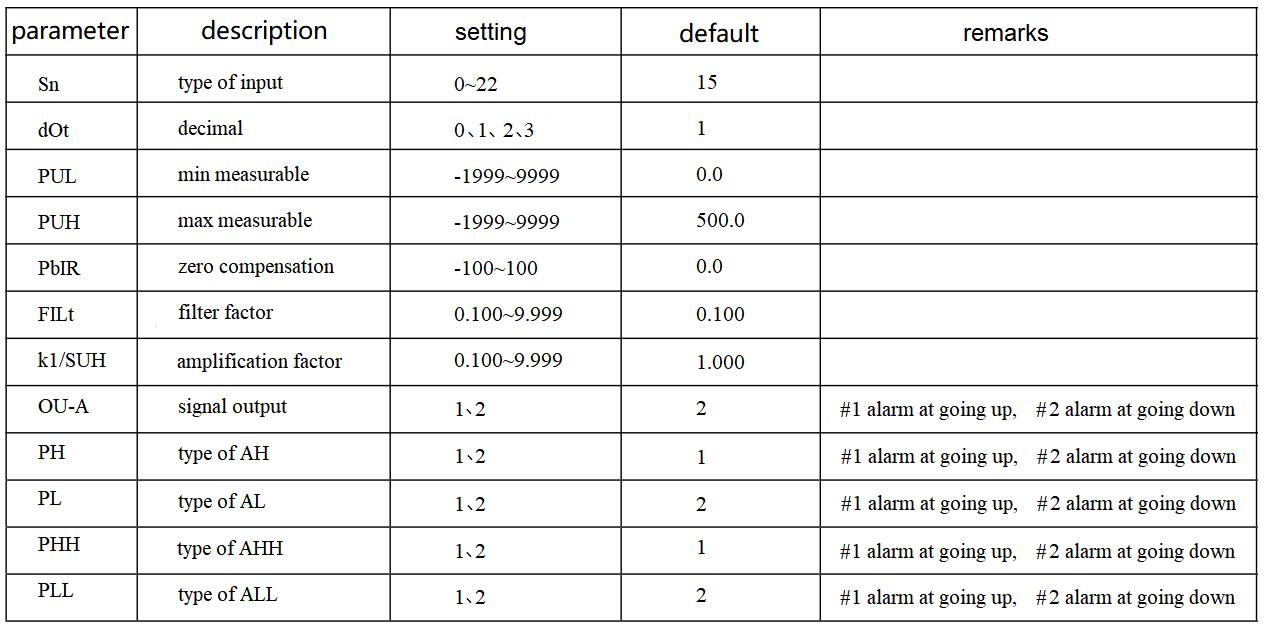

A. Setting for level#2 parameters
